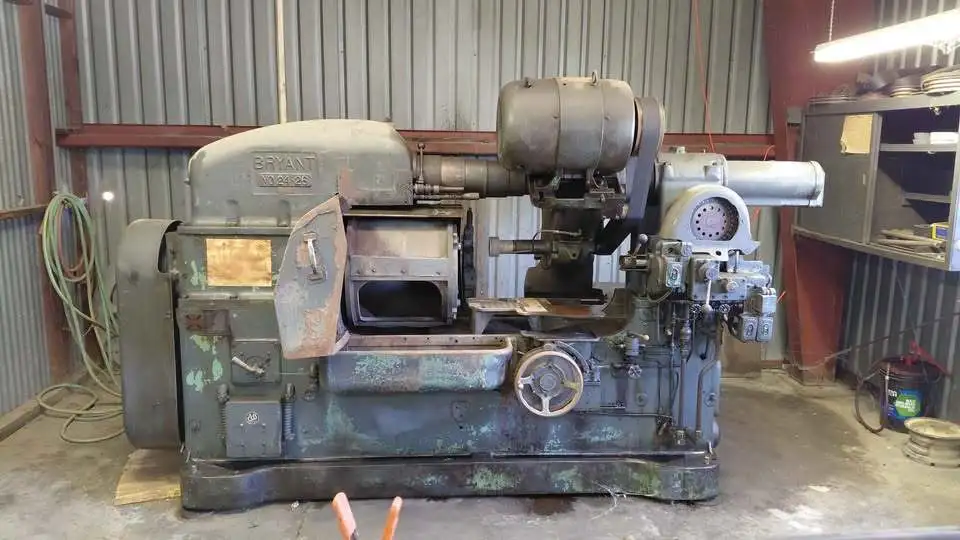

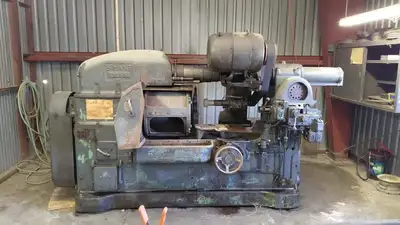

Brand - Bryant
Model - No. 24-26″
Type - Hydraulic Internal Grinder
New in 1950’S
SPECIFICATIONS:
Total Chuck Swing Without Guard - 6″
Maximum Traverse Stroke - 19″
Maximum Grinding Length - 6″
RPM of Work Spindle - 70, 90, 135, 180 RPM
Wheel Slide Traverse Speed - to 25′ Per Minute
Motor:
Wheel Drive - 10 HP, 1800 RPM
Work Drive - 1-3 HP, Multispeed AC
Oil Pump - 2 HP, 1200 RPM
Oil Reservoir Capacity - 16 Gallons
Weight of Machine(Approximate) - 12,000 Lbs.
Floor Space Required without Coolant Tank - 11′ x 5′
FEATURES & ACCESSORIES:
Grinding Wheel Spindle
Splash Guards
Swing Down Dresser
Coolant System
