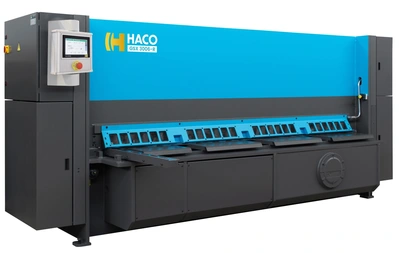

HACO GSX 3013 10' x 1/2" Shear
Have one to sell?
New
HACO GSX Series hydraulic guillotine shears are driven by top mounted cylinders, guaranteeing a product of exceptional design, great efficiency, and equipped with a standard SC200 controller.
Brand: HACO
Model GSX 3013
Type: Hydraulic Shear
Capacity - 10' x 1/2"

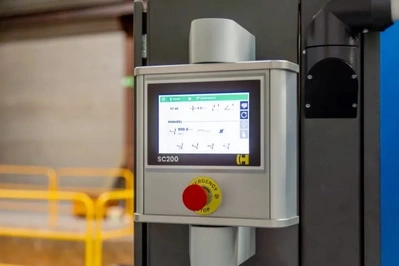

Control - SC200 with 7" color LCD touchscreen
Motor - 30 HP
Optional equipment
Hydraulic sheet support system
Sheet Back to Sender functionality (SBS).
SAB (= 'Swing-Away Backgauge')
Optical finger protection
Hand Safety Guard with safety light curtain
Full table consisting of segments, with ball transfers for easy feed-in of the sheets
Squaring arms and front support arms with or without scale, T-slot ,and tilling stop. Lengths from 1000 to 3000 mm per multiple length of 500 mm
Pendant control arm
Protractor for angle shearing
Control SC200 with 7" colour LCD touchscreen
Backgauge 2 rigids arms, assuring a precise postioning of the sheet
2 Upper-driven push-down cylinders

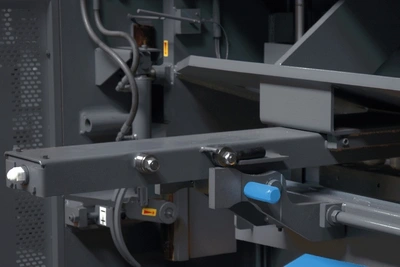

Squaring arm of 1000 mm with scale, T-slot and tilling stop

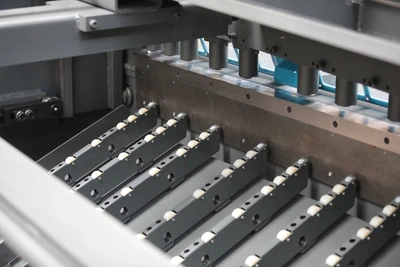

Iron square plate support blocks with ball transfers
Optional equipment
Hydraulic sheet support system
Sheet Back to Sender functionality (SBS).
SAB (= 'Swing-Away Backgauge')
Optical finger protection
Hand Safety Guard with safety light curtain
Full table consisting of segments, with ball transfers for easy feed-in of the sheets
Squaring arms and front support arms with or without scale, T-slot ,and tilling stop. Lengths from 1000 to 3000 mm per multiple length of 500 mm
Pendant control arm
Protractor for angle shearing
