1996 NISSEI DC200-25ASE | Injection Molding Machines

Description

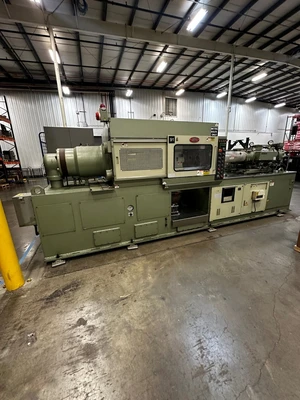

1996 Nissei DC200-25ASE Two-Shot Injection Molding Machine
Includes 2008 Yushin Servo Robot

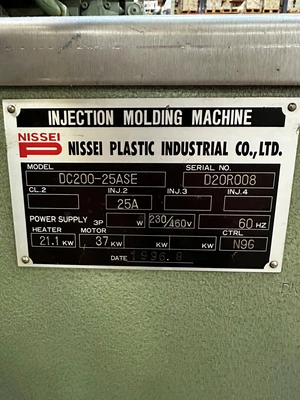

Manufacturer: Nissei Plastic Industrial Co., Ltd.
Model: DC200-25ASE
Year: 1996

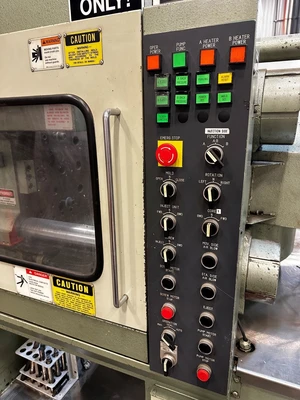

Controller: N9G / NC9000G
Configuration: Hydraulic Rotary Platen Two-Shot (2K / Two-Color / Dual Injection)
________________________________________
Specifications
Item Specification
Clamp Force 220 Tons (200 Metric Tons)
Machine Type Horizontal Hydraulic
Injection Units 25A / 25A
Shot Size 6.79 oz / 6.79 oz) each barrel
Max Injection pressure 25,260 PSI
Max Hydraulic pressure 2,000 PSI
Screw Diameter 45 mm / 45 mm
Clamp Stroke 20.5"
KO Stroke 3.93"
Injection Stroke 160 MM
Tie Bar Spacing 36.4" × 12.0"
Minimum Mold Height 9.8"
Maximum Daylight 26.4"
Power 230/460V, 3 Phase, 60 Hz
Main Motor 37 kW
Heater Capacity 21.1 kW
Approximate Weight 15,600 lbs
Approximate Dimensions 235" L × 65" W × 77" H

________________________________________
Included Robot

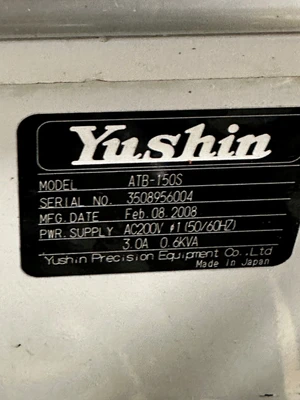

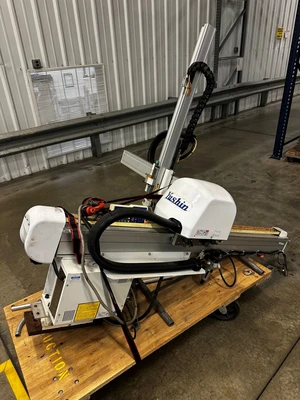

Yushin ATB-150S
• Manufactured February 2008
• Servo top-entry robot

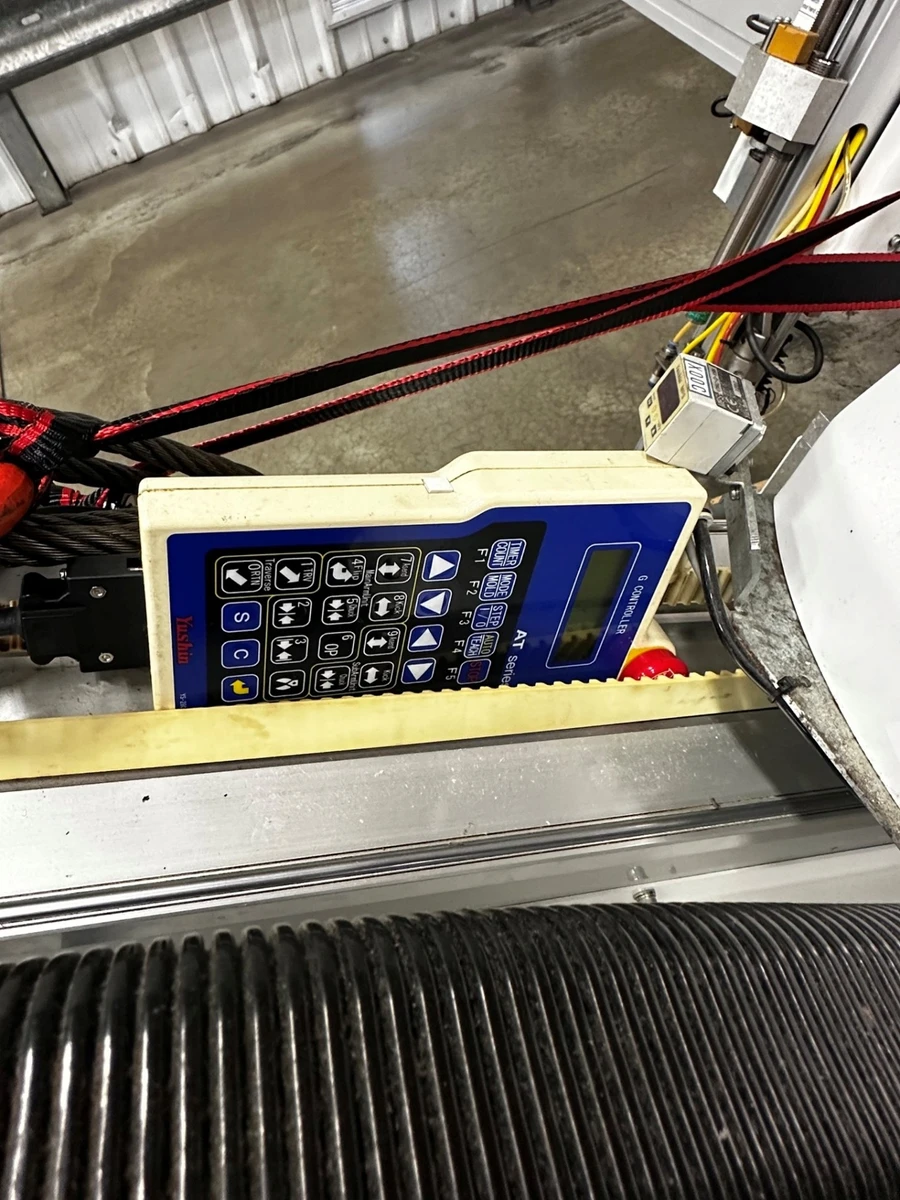

• Teach pendant included
• Controller included
• Mounted on machine
• 200V Single Phase
• 297 lbs
The robot is approximately 12 years newer than the press, making it a valuable upgrade over an original 1996 robot.
________________________________________
Features

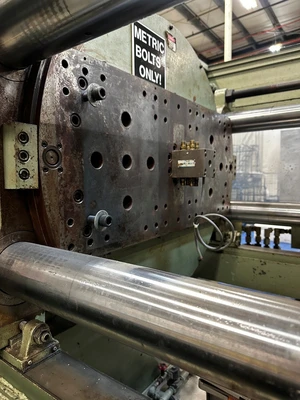

• Factory rotary platen
• True dual-shot machine
• Two-color molding
• Two-material molding
• Overmolding capable
• Insert molding capable
• Robot interface
• Yushin servo automation included
• Japanese-built Nissei quality
• Complete molding cell
________________________________________
Excellent For
• Medical molding
• Automotive components
• Consumer products
• Soft-touch overmolding
• Multi-material molding
• Two-color parts
• Insert molding
________________________________________
Included
✔ Nissei DC200-25ASE Injection Molding Machine
✔ Yushin ATB-150S Servo Robot
✔ Robot Controller
✔ Teach Pendant
✔ Mounted Robot
✔ Safety Guarding
