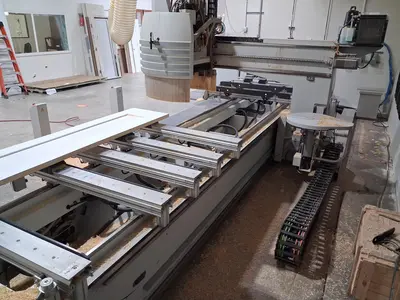

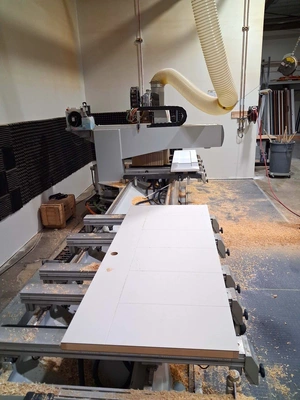

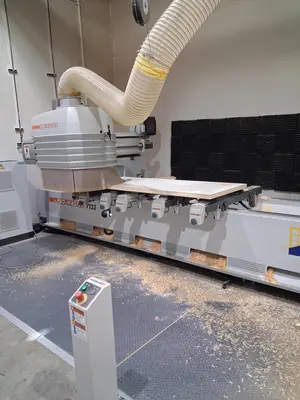

2007 HOLZ-HER PRO-MASTER 7123 K | Routers

Manufacturer: Holz-Her
Model: Pro Master 7123K
Year: 2007

X-Axis Travel: 3,866 mm (152 inches)
Y-Axis Travel: 1,650 mm (65 inches)
Z-Axis Travel: 325 mm (12.7 inches)
Standard Working Field (X x Y): 3,200 x 1,260 mm

Boring and Drilling Unit:
Vertical Boring Bits: 24 total (10 in X axis, 8 to 18 depending on specific configuration in Y axis)
Horizontal Double Spindles: 2 in X axis, 1 in Y axis
Spindle Speed: Variable from 1,000 up to 6,800 RPM
Boring motor approx. 5 HP / 3.6 kW)

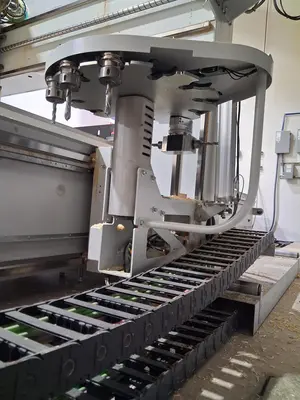

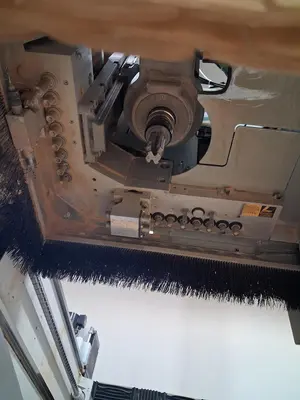

Routing Spindle and Tool Changer:
Main Spindle Power: Up to 21 HP
Rotation Speed: Max 18,000 to 24,000 RPM
Tool Clamping: HSK-F63
Tool Changer Positions: Ride-along or fixed magazine with 6 to 24 positions

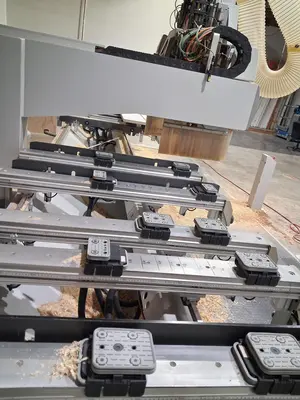

Table and Workholding
Support Rails: 6 motor-controlled adjustable support beams with vacuum pods
Vacuum Pump: Becker pump capacity approx. 100 to 150 m³/h

Approx Weight: 10,538 lbs
Aprox Footprint: 288" x 152" x 97"

*** It is a 3+1 axis machine with the additional axis achieved through an aggregate tool.
*** AVAILABLE: NOV 1 2026
*** Recently serviced by Holz-Her tech

TERMS:
Location Santa Clara, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
