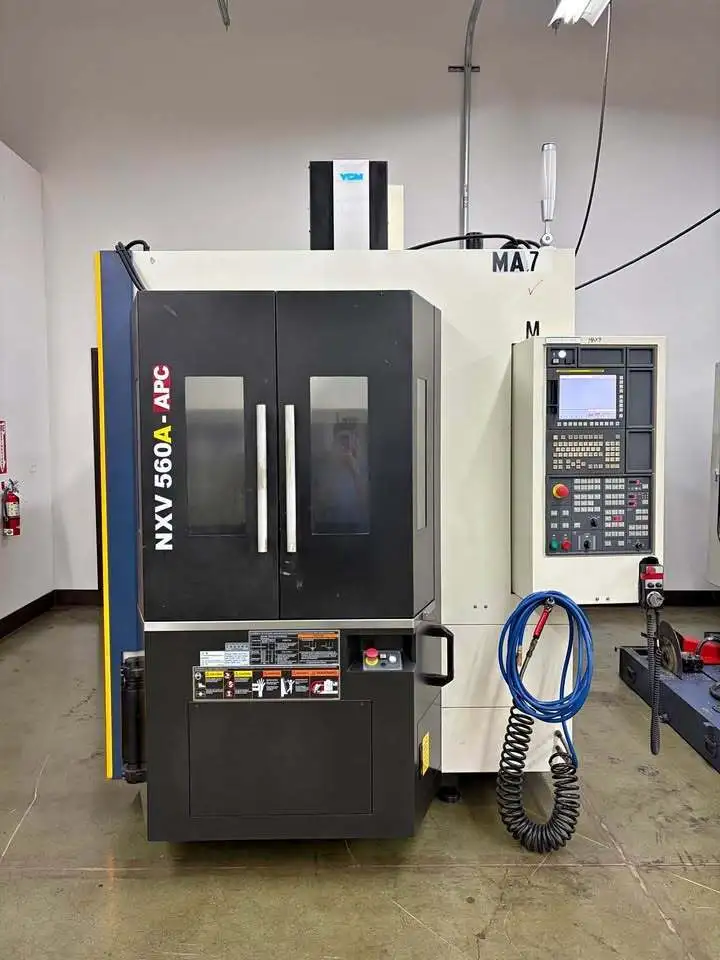

YCM NXV560A-APC | Vertical Machining Centers

Brand: YCM
Model: NXV560A-APC
Yeah: 2018

Fanuc Control
Dual Automatic Pallet Changer
12K RPM, 25HP Spindle
24-Tool ATC

Travels & Capacity

• X-axis travel: 22” (560 mm)
• Y-axis travel: 16.1” (410 mm)
• Z-axis travel: 17.7” (450 mm)
• Pallet size: 22” x 16.1” (560 x 410 mm) — two pallets
• Max load per pallet: approx. 265 lbs (120 kg)
• Rapids: 1,890 IPM (48 m/min) X/Y/Z

Hours:
Run Time: 12,458
Cut Time: 7,377

Terms:
Located in Fremont, CA. Sold as-is, where-is. Buyer responsible for rigging, loading, and freight. Inspection welcome by appointment prior to purchase.
