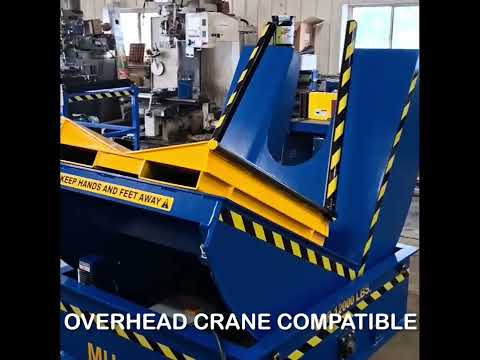

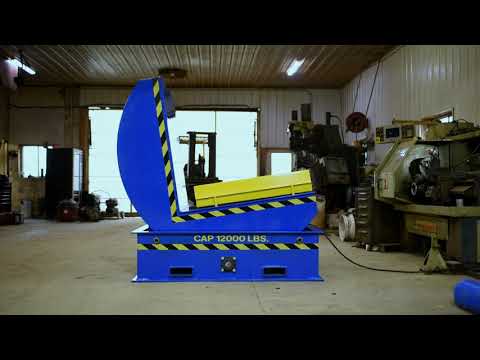

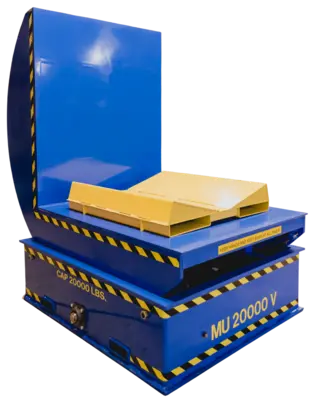

COILQUIP MU 20000V Upender
Have one to sell?
New
(New) Coilquip Model MU20000V Coil Upender with 20,000 lb x 60" capacity
Brand: Coilquip
Model: 20000V
Type: Coil Upender
Brand new, made-to-order in the USA
20,000 pound capacity
60" O.D. coil maximum (also available in 80" O.D.)
Removable, 3-position v-saddle
Deck dimensions 48" x 48"
2-Channel Lodar remote controls (two included)
Wired diagnostic pendant included
2hp eurodrive motor and gearbox
Dual #100 roller chain drive
208-230/460/3/60 or 230/1/60
Dimensions approx. 54" L x 72" W x 75" H
Weight approx. 3,500lb
Fork slots for easy relocation
MADE IN USA
**Ask for price on 60" or 80" diameter
OPTIONS AVAILABLE:
- Notched deck for overhead lifting
- Keeper bars for narrow coils (less than 12 inches in width)
