Betenbender 10' x 1/4" Shear
Have one to sell?
New

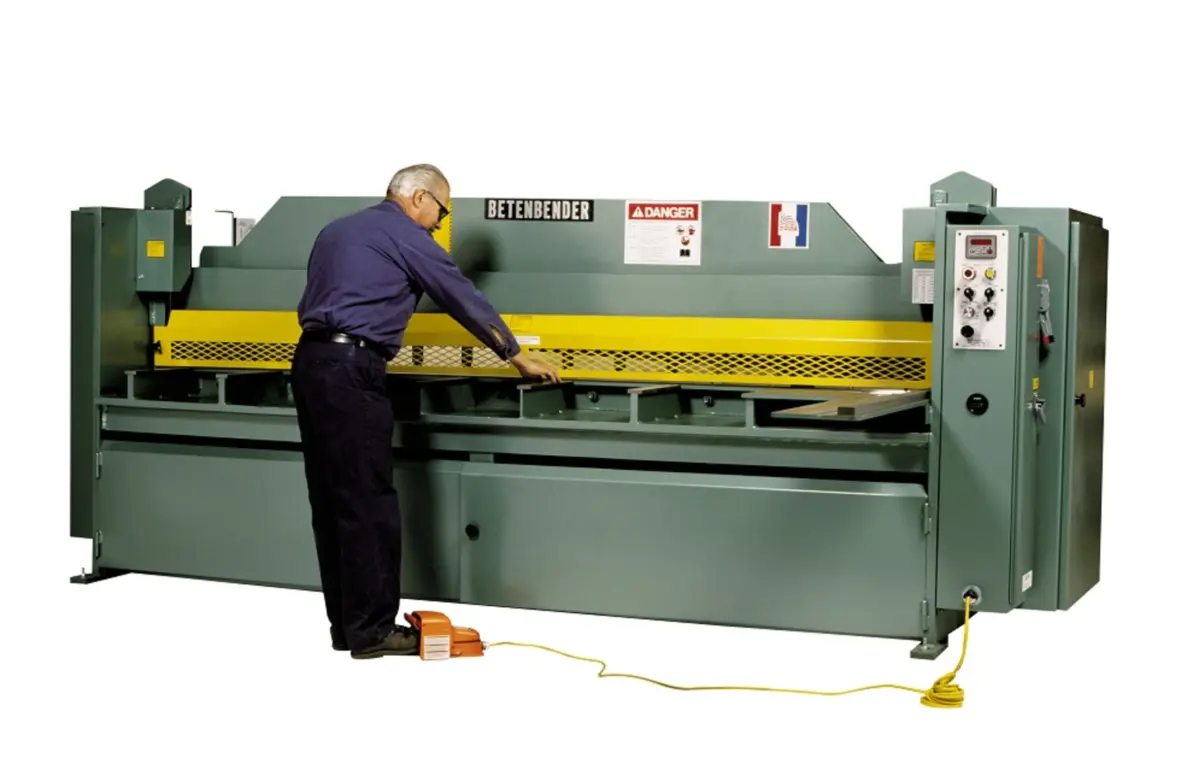

BETENBENDER 10' X 1/4" LOW PROFILE SHEAR, MODEL 10-250
Brand: Betenbender
Model: 250-10
Type: Hydraulic Squaring Shear
Capacity - 10′ x 1/4"
Motor: 15 HP (208-230/460v 3 phase)
Strokes Per Minute 15
Knives: 1" x 4" x 124"
Number of Holddowns: 19
Anchor Bolt Dimensions 127"
Rake Angle per Rated Capacity: 1/4"
36” Power Backgauge w/LED Readout
4’ Squaring Arm w/Inlaid Scale
Power Adjust Variable Rake Hydraulic
Dimensions - Overall Height 61" x 156" Wide x Table Height 32"
Weight - 12,500 lbs.
Self-Compensating Holddown Bar Assy.
Manual Swing Up Backgauge
All Steel Construction
Weight approx. 12,500#
NEMA Electrics
Disconnect Switch
Hour Meter
Light Beam Gauge
All Hydraulic Fluids
Mark ll HCHC Knives
Baldor 15HP Motor
Options:
NC Control 5 Station “Go To” Positioner
48” Support Arms/Front Gauges
Solid Table Top - Bolt on Segments
One Shot Lube
Keylock Switch
