Wysong 10' x 10 Gauge Shear
Have one to sell?
1 available

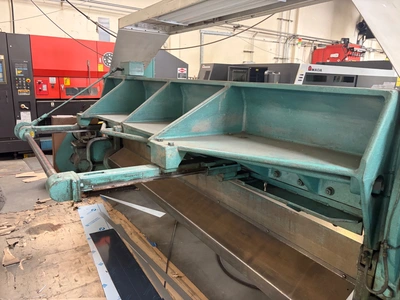

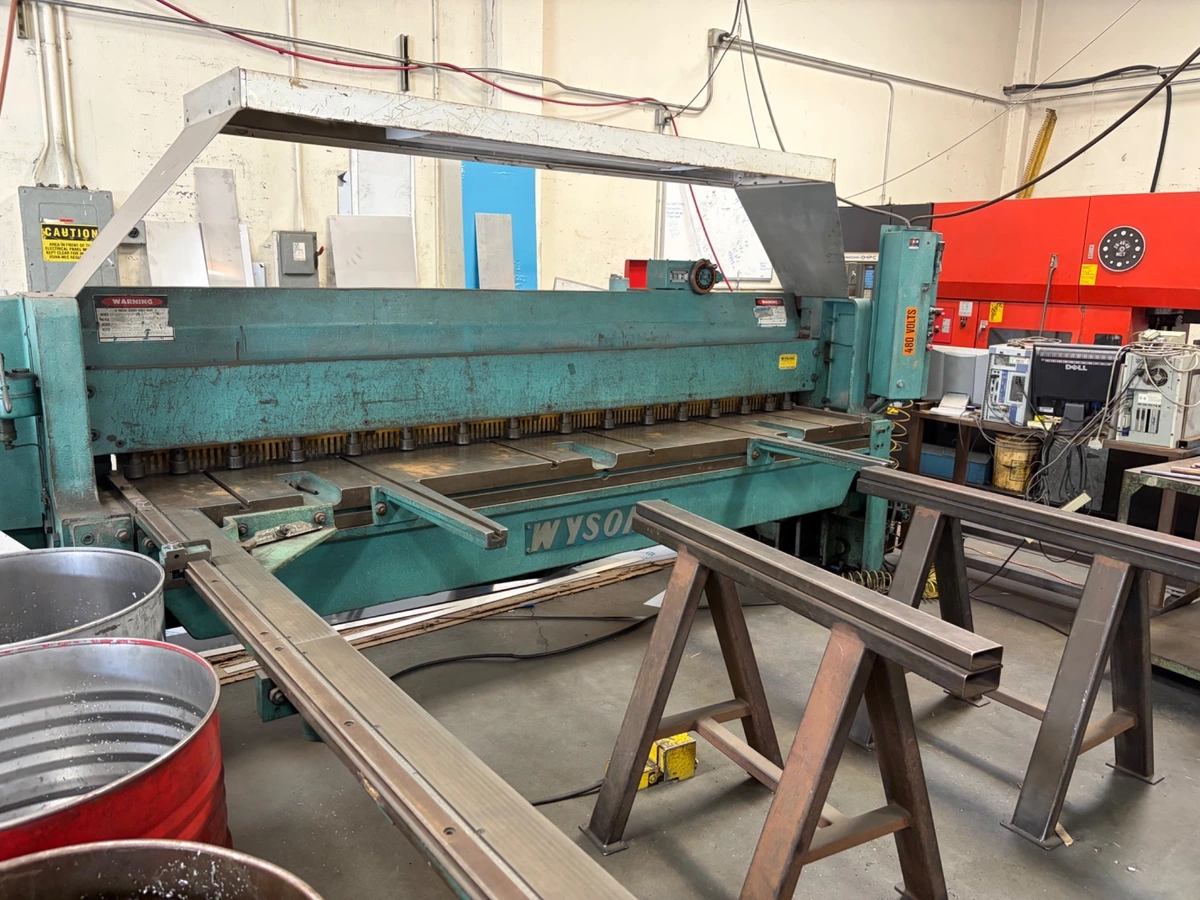

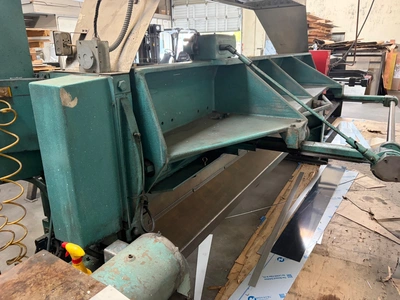

Wysong Model 1010 is a heavy-duty mechanical power squaring shear designed for rapid, high-accuracy production cutting. It features a nominal rated capacity of 10 gauge to 3/16” INT mild steel across a 10-foot cutting length, w/ front operated backgauge, squarling arm and (2) front supports.

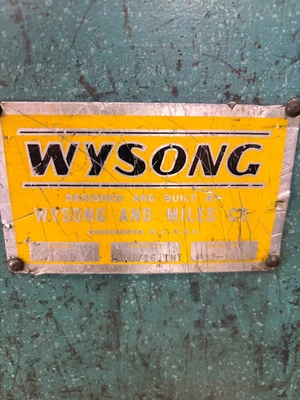

Brand: Wysong
Model: 1010
Type: Mechanical Shear
SN: P32-1523
Capacity - 10 Ga - Mild Steel
Capacity - Intermittent Use: 3/16"
Cutting Length: 120"
Rake of Upper Blade: 3/8"
Speed: 55 SPM
Working Height: 34"
Number of Hold Downs: 16
3 phase 220 / 440 Volt
EQUIPPED WITH:
Manual Front Operated Back Gauge
Squaring Arm
2 Support Arms
Back Gauge Range: 24-inch to 36-inch travel (depending on generation/options)
Main Motor: 7.5 HP to 10 HP (Typically 1800 RPM, configured for 230V/460V 3-phase)
Approximate Machine Weight: 15,000 lbs
Approximate Floor Dimensions: 14' L x 7' D x 5' H
TERMS:
Location San Carlos, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck if removed by 9/8/26. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
