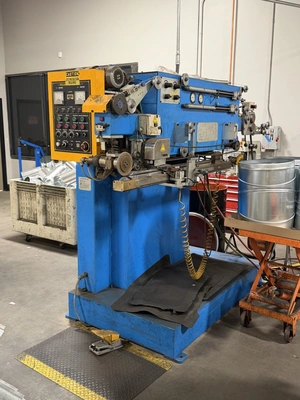

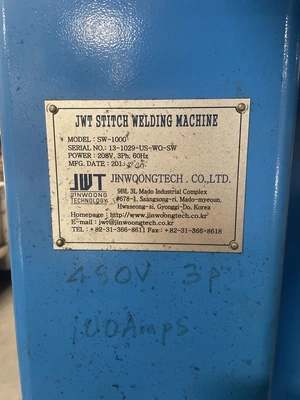

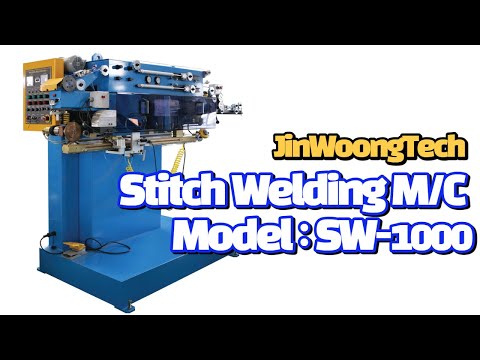

JWT Stitch Welding Machine SW-1000
Have one to sell?
1 available
JWT Stitch Welding Machine does stitch and continuous welding of galvanized steel overlap seams with 6mm/.25" overlap.
Brand: JWT (Jinwoongtech)
Model: SW-1000
Type: Stitch & Continuous Welding Machine
Year: 2013
Welding Thickness Capacity:
- Galvanized: 0.4 to 1.0 mm (28 to 20 Gauge)
- Stainless: 0.4 to 0.8 mm (28 to 22 Gauge)
Welding Speed: 3 to 9 m/min (9.8 to 29.5 FPM)
Diameter Range: 100 ~ 1,000 mm (4 to 40")
Welding Length Range: 75 to 1,000 mm (3 to 40")
Seam Overlap: 6mm (.25")
Wire Diameter (Copper/Coated wire): 1.8 mm
Cooling Type: Water cooling System
Transformer: 60KVA
Electric Power Supply: 220V 380V, 3Ph, 50/60Hz
Material: Galvanized Steel, Stainless Steel, Mild Steel
This Stitch Welding Machine does stitch and continuous welding of galvanized steel lap seams with 6mm/.25" overlap. Welding machine is water cooled with 60KVA power supply and standard 1.8mm diameter wire.
TERMS:
Location Sacramento, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
JWT Stitch Welding Machine does stitch and continuous welding of galvanized steel overlap seams with 6mm/.25" overlap.
Brand: JWT (Jinwoongtech)
Model: SW-1000
Type: Stitch & Continuous Welding Machine
Year: 2013
Welding Thickness Capacity:
- Galvanized: 0.4 to 1.0 mm (28 to 20 Gauge)
- Stainless: 0.4 to 0.8 mm (28 to 22 Gauge)
Welding Speed: 3 to 9 m/min (9.8 to 29.5 FPM)
Diameter Range: 100 ~ 1,000 mm (4 to 40")
Welding Length Range: 75 to 1,000 mm (3 to 40")
Seam Overlap: 6mm (.25")
Wire Diameter (Copper/Coated wire): 1.8 mm
Cooling Type: Water cooling System
Transformer: 60KVA
Electric Power Supply: 220V 380V, 3Ph, 50/60Hz
Material: Galvanized Steel, Stainless Steel, Mild Steel
This Stitch Welding Machine does stitch and continuous welding of galvanized steel lap seams with 6mm/.25" overlap. Welding machine is water cooled with 60KVA power supply and standard 1.8mm diameter wire.
TERMS:
Location Sacramento, CA - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
