JORNS AG SUPER-LINE-300-SM3-CNC400A-8 | CNC Metal Folder
Have one to sell?
1 available

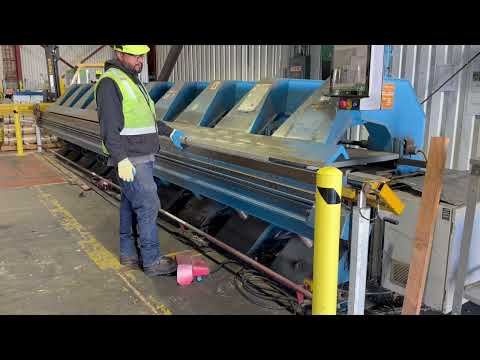

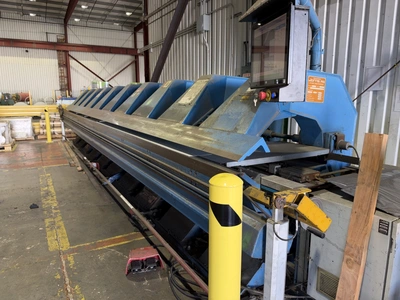

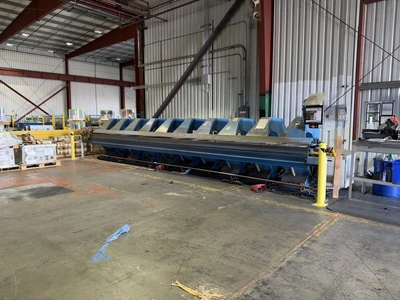

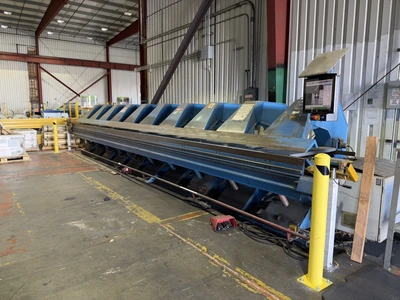

Jorns 26' x 11 Gauge CNC Folder
Brand: JORNS
Model: SUPER-LINE-300-SM3-CNC400A-8
Type: CNC FOlder
Year: 1998
Capacity - 800mm x 3mm - (26’ x ~11 Gauge)
Mild Steel (400 N/mm²): Up to 3.0 mm (approx. 11 gauge)
Aluminum (22 kg/mm²): Up to 4.0 mm
Stainless Steel (V2A): Up to 2.0 mm
Maximum Bending Angle: Up to 140°–143°
Insertion / Throat Depth: Standard 1,000 mm (1.0 meter)
Upper Beam Opening Stroke: Max 200 mm (7.8 inches) [1, 2, 3]

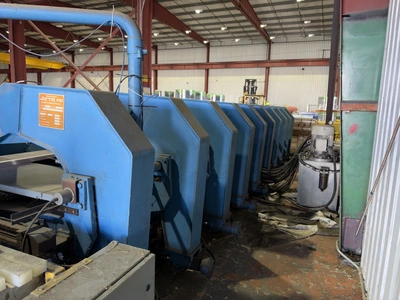

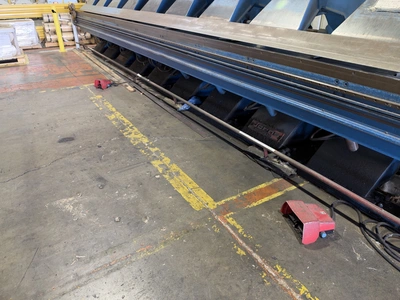

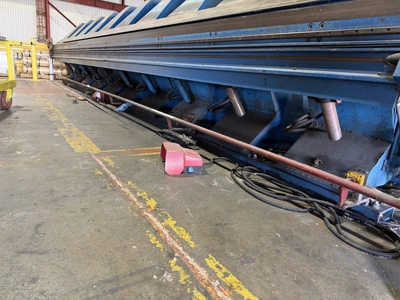

Bending Cylinders - 10
Weight : 9,000 Kg / 20,000 lbs
Approx Dimensions: 29’ x 6’ D x 6’ H

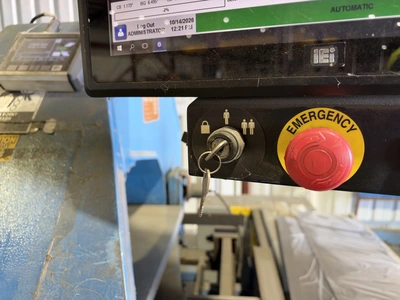

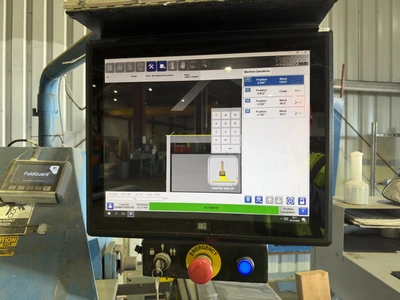

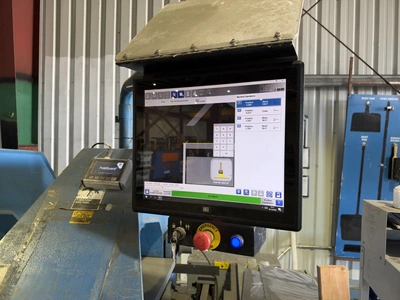

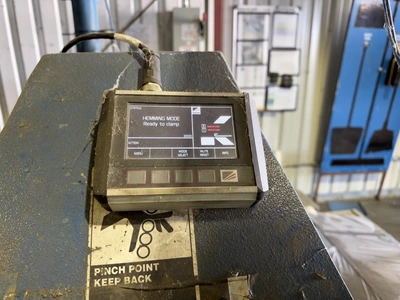

AMS Control with Pathfinder software version 4.10.9.2146 (2018)
AMS Fold Guard light curtain

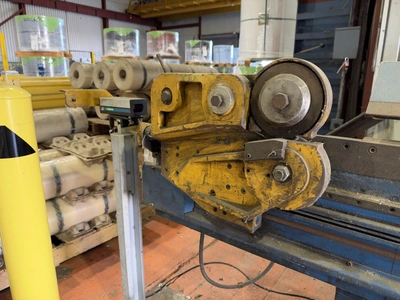

Slitter - not operational
Seller's Note: This machine is currently in operation pending arrival of new bending cell. Hydraulic pump rebuilt in 2021. All cog belting replaced in 2022. Clamping beam cylinders rebuilt in 2022/2023.
TERMS:
Location Sacramento, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Jorns 26' x 11 Gauge CNC Folder
Brand: JORNS
Model: SUPER-LINE-300-SM3-CNC400A-8
Type: CNC FOlder
Year: 1998
Capacity - 800mm x 3mm - (26’ x ~11 Gauge)
Mild Steel (400 N/mm²): Up to 3.0 mm (approx. 11 gauge)
Aluminum (22 kg/mm²): Up to 4.0 mm
Stainless Steel (V2A): Up to 2.0 mm
Maximum Bending Angle: Up to 140°–143°
Insertion / Throat Depth: Standard 1,000 mm (1.0 meter)
Upper Beam Opening Stroke: Max 200 mm (7.8 inches) [1, 2, 3]
Bending Cylinders - 10
Weight : 9,000 Kg / 20,000 lbs
Approx Dimensions: 29’ x 6’ D x 6’ H
AMS Control with Pathfinder software version 4.10.9.2146 (2018)
AMS Fold Guard light curtain
Slitter - not operational
Seller's Note: This machine is currently in operation pending arrival of new bending cell. Hydraulic pump rebuilt in 2021. All cog belting replaced in 2022. Clamping beam cylinders rebuilt in 2022/2023.
TERMS:
Location Sacramento, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
