CIDAN PRO 30 CNC Folder
Have one to sell?
1 available
Cidan PRO 30 Folding machine with 122" x 9 Gauge capacity, well maintained by seller, with cart of tooling included. Great buy.
Brand: Cidan
Model: PRO30
Type: CNC Folder
Year: 2018
Working length - 122″ (3100 mm)\
Steel - 9 gauge (4.0 mm)
Stainless steel - 12 ga (1.9 mm)
Aluminum - 0.236″ (6.0 mm)
Opening height clamping beam - 7.8″ (200 mm)
Motor clamping beam - 5.4 hp (4.0 kW)
Motor folding beam - 7.4 hp (5.5 kW)
Electrics: 400v per nameplate
Weight - 17,886 lbs (8130 kg)
(OEM SPECS)

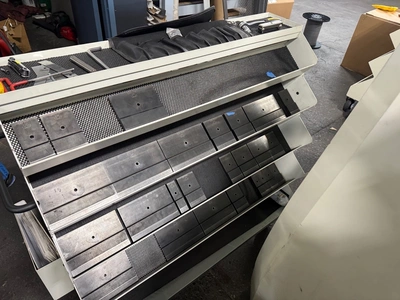

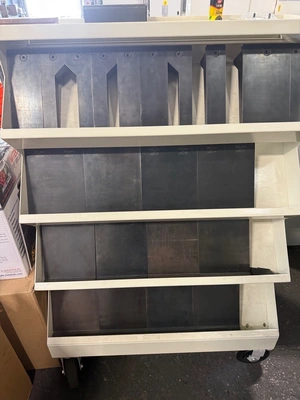

* Includes assorted tooling in photos
TERMS:
Location Reno, NV - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Seller will remove from power, buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
CIDAN PRO folding machine is a versatile folding machine. With its great power and comprehensive equipment, complex details can be folded without a single tool change. All settings are managed through the control system, resulting in extremely short setup times. The integrated back gauge can be designed so that the machine is advantageously operated from the rear when folding larger details.
Cidan PRO 30 Folding machine with 122" x 9 Gauge capacity, well maintained by seller, with cart of tooling included. Great buy.
Imperial
| Max Thickness | 0.1495" |
| Max Thickness (gauge) | 9 gauge |
| Overall Length | 10.17' |
Brand: Cidan
Model: PRO30
Type: CNC Folder
Year: 2018
Working length - 122″ (3100 mm)\
Steel - 9 gauge (4.0 mm)
Stainless steel - 12 ga (1.9 mm)
Aluminum - 0.236″ (6.0 mm)
Opening height clamping beam - 7.8″ (200 mm)
Motor clamping beam - 5.4 hp (4.0 kW)
Motor folding beam - 7.4 hp (5.5 kW)
Electrics: 400v per nameplate
Weight - 17,886 lbs (8130 kg)
(OEM SPECS)
* Includes assorted tooling in photos
TERMS:
Location Reno, NV - “AS-IS, WHERE-IS” off seller’s floor, Full Payment due prior to shipment. Seller will remove from power, buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
CIDAN PRO folding machine is a versatile folding machine. With its great power and comprehensive equipment, complex details can be folded without a single tool change. All settings are managed through the control system, resulting in extremely short setup times. The integrated back gauge can be designed so that the machine is advantageously operated from the rear when folding larger details.
